PE 1000 - EL
Product full identity:
Polyethylene - Electrical Conductive Ultra High
Molecular Weight
PE 1000-EL remains permanently antistatic and conductive. Offering high impact strength and low moisture absorption this material is effective for applications such as electrically sensitive and lining applications.
Properties
- Permanently antistatic and conductive
- Excellent wear resistance and sliding properties
- High impact strength
- Wide temperature range (+80 to -200°C)
- Low coefficient of friction
- Very low moisture absorption <0.1%
- Food contact approved.
Applications
- Ideal for application where explosive hazards
are possible and all sensitive requirements.
Forms

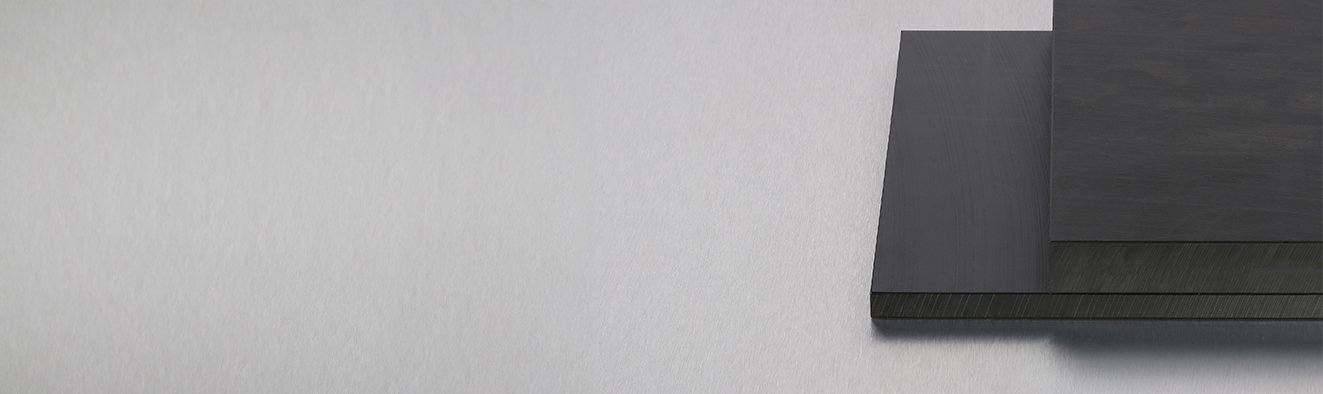

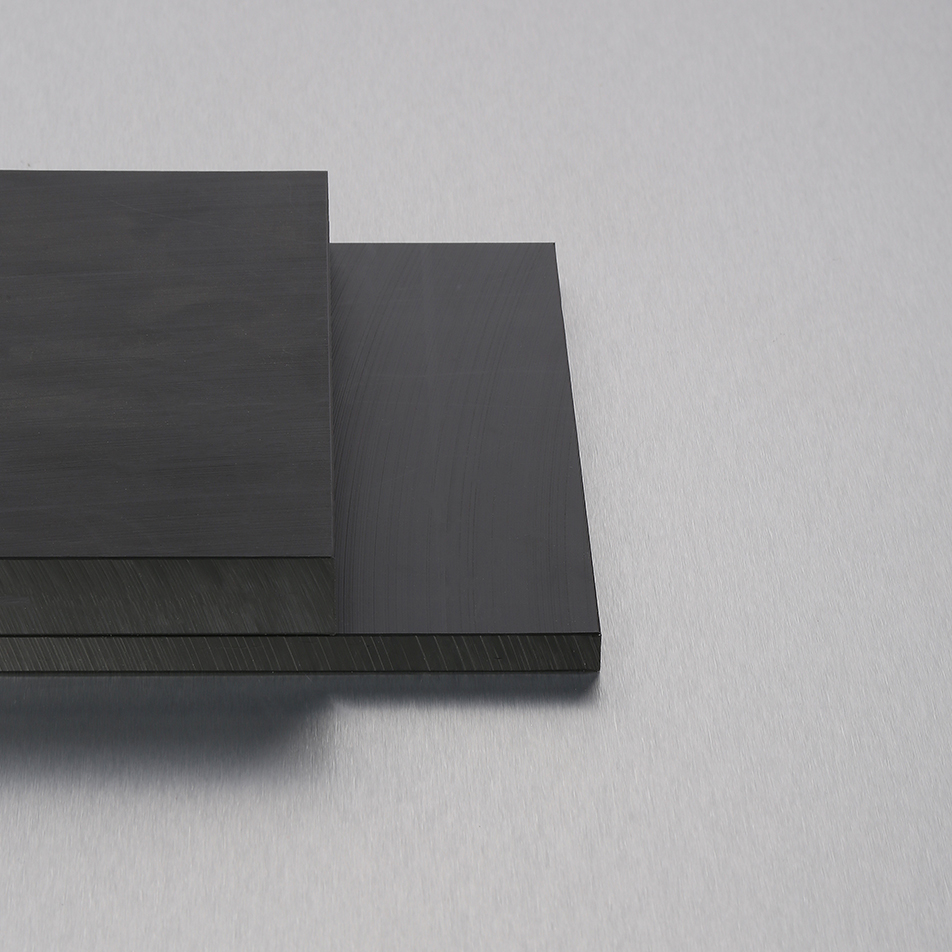

- Sheet
Technical Properties:
All information is for guide purposes only. The data has been taken from standard test results provided by our manufacturers.
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Specific gravity | g/cm³ | DIN EN ISO 1183-1 | 0.93 |
| Water absorption till saturation 23°C | % | DIN EN ISO 62 | < 0.01 |
| Maximum service temp. Upper temp limit - short term | °C | 120 | |
| Maximum service temp. Upper temp limit - Long term | °C | 85 | |
| Lower temp limit | °C | -100 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Tensile strength | MPa | DIN EN ISO 527-1 | ≥ 18 - 20 |
| Elongation at yield | % | DIN EN ISO 527-1 | 350 |
| Unnotched Impact strength | kJ/m² | DIN EN ISO 179-1 | no break |
| Notch impact strength | kJ/m² | DIN EN ISO 179-1 | > 140 |
| Ball indentation / Rockwell hardness | MPa | DIN EN ISO 2039-1 | 38 |
| Tensile modulus of elasticity | MPa | DIN EN ISO 527-1 | 700 |
| Shore-D | DIN EN ISO 868 | 64 | |
| Shore-D | DIN EN ISO 868 | 64 | |
| Shore-D | DIN EN ISO 868 | 64 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Surface resistivity | Ω | DIN EN 62631-3-1 | < 104 |
| Insulation resistivity | Ω . cm | DIN EN 62631-3-1 | < 104 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Vicat-softening point VST/B/50 | °C | DIN EN ISO 306 | 80 |
| Coefficient of linear thermal expansion 23°C - 100°C | m/(m.K) | ISO 11359-2 | 1.5-2·10ˉ⁴ |
| Thermal conductivity at 23°C | W/mK | ISO 52612 | > 0.40 |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes | |
| Antistatic | yes | ||
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes | |
| Antistatic | yes | ||
| Food compliance - FDA | FDA | yes | |
| Food compliance - EU | EU 10/2011 | yes | |
| Antistatic | yes |
| Property | Unit | Test Method | Value |
|---|---|---|---|
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB | |
| Fire performance | UL 94 | HB |
